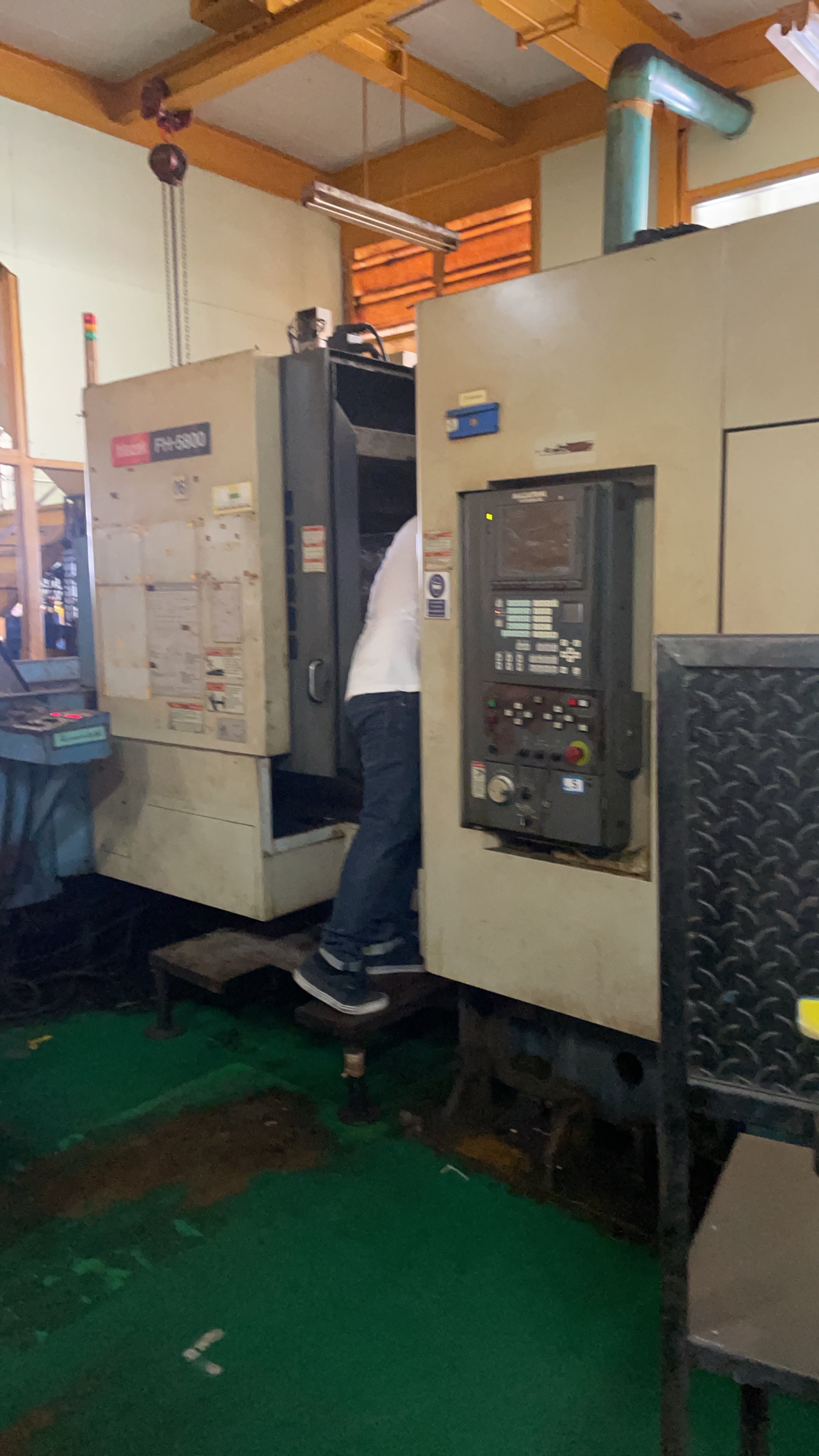

The 2001 MAZAK FH-5800 is a precision-built horizontal machining center designed for efficiency and uninterrupted operations in demanding metalworking environments. Manufactured by Yamazaki Mazak Corp., it features a twin-pallet setup allowing simultaneous part loading and machining, significantly boosting throughput.

Equipped with MAZATROL 640M CNC control, this machine supports advanced programming and control flexibility. It comes with two 500 × 500 mm pallets capable of holding up to 500 kg each, ideal for medium to large-sized components. Axis travels measure 710 mm (X), 610 mm (Y), and 660 mm (Z), paired with a robust 22 kW spindle motor and a 12,000 RPM ISO 40 taper spindle.

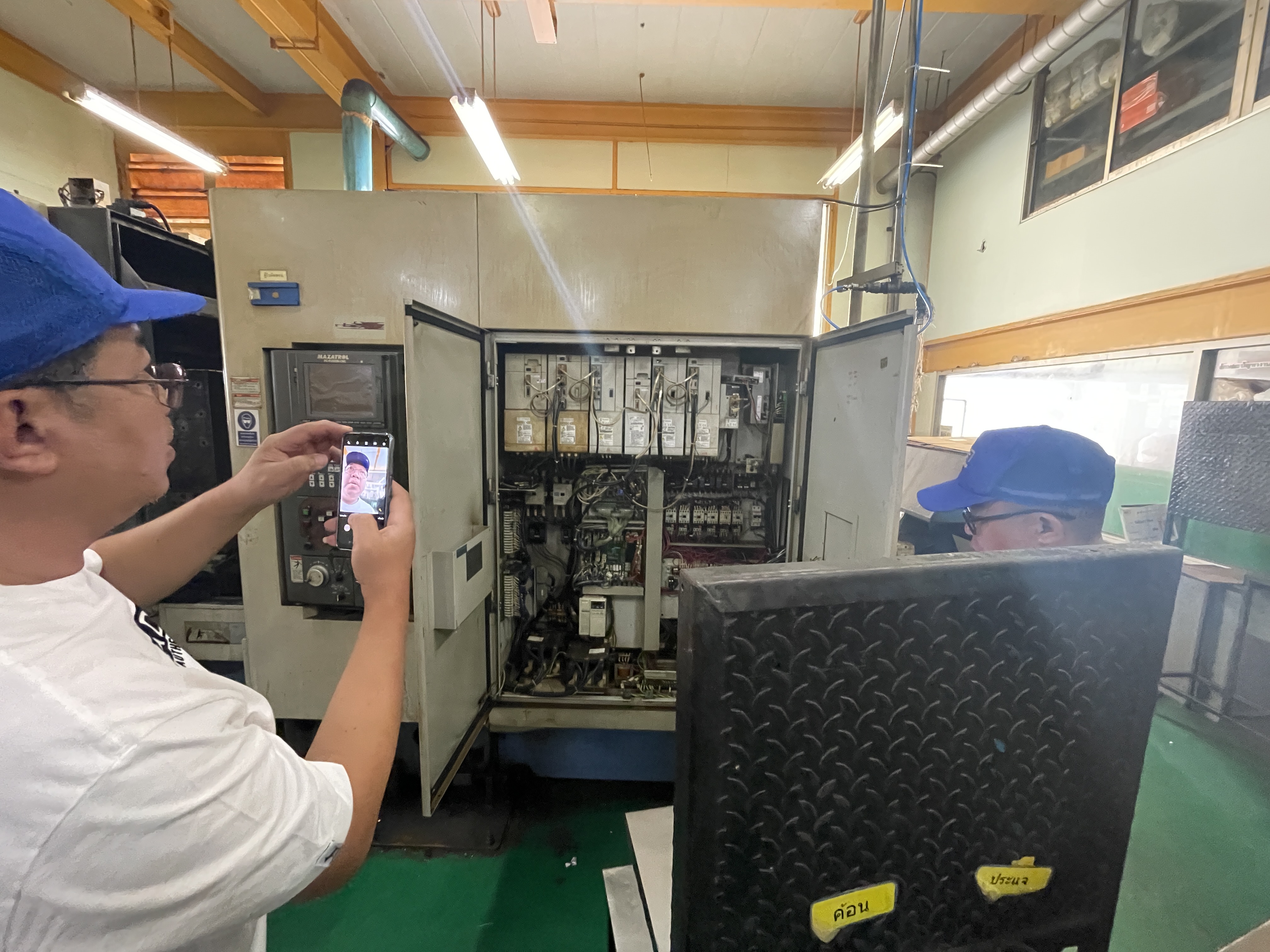

The tool magazine accommodates up to 40 tools, streamlining multi-process operations. The system operates on 3-phase 200V input and is rated at 54.5 kVA, with control circuits at AC100V/DC24V.

Specifications

• Model: FH-5800

• Year: 2001

• Control: MAZATROL 640M

• Number of Pallets: 2

• Pallet Dimensions: 500 × 500 mm

• Max Part Weight: 500 kg

• Travels (X/Y/Z): 710 / 610 / 660 mm

• Spindle Taper: ISO 40

• Max Spindle Speed: 12,000 RPM

• Spindle Motor: 22 kW

• Tool Magazine: 40 tools

• Weight: 14,200 kg

• Power: 54.5 kVA, 3AC 200V


Condition

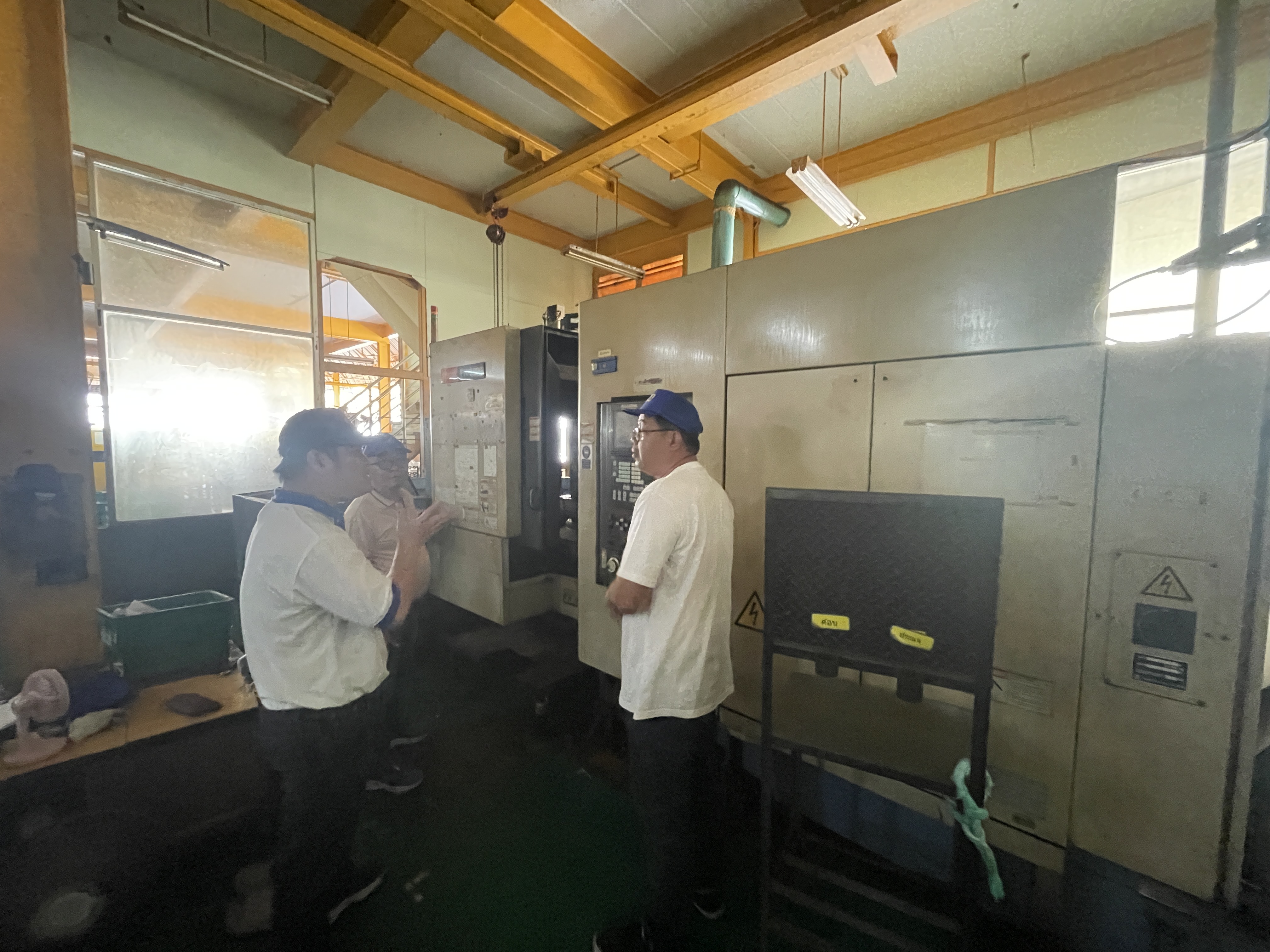

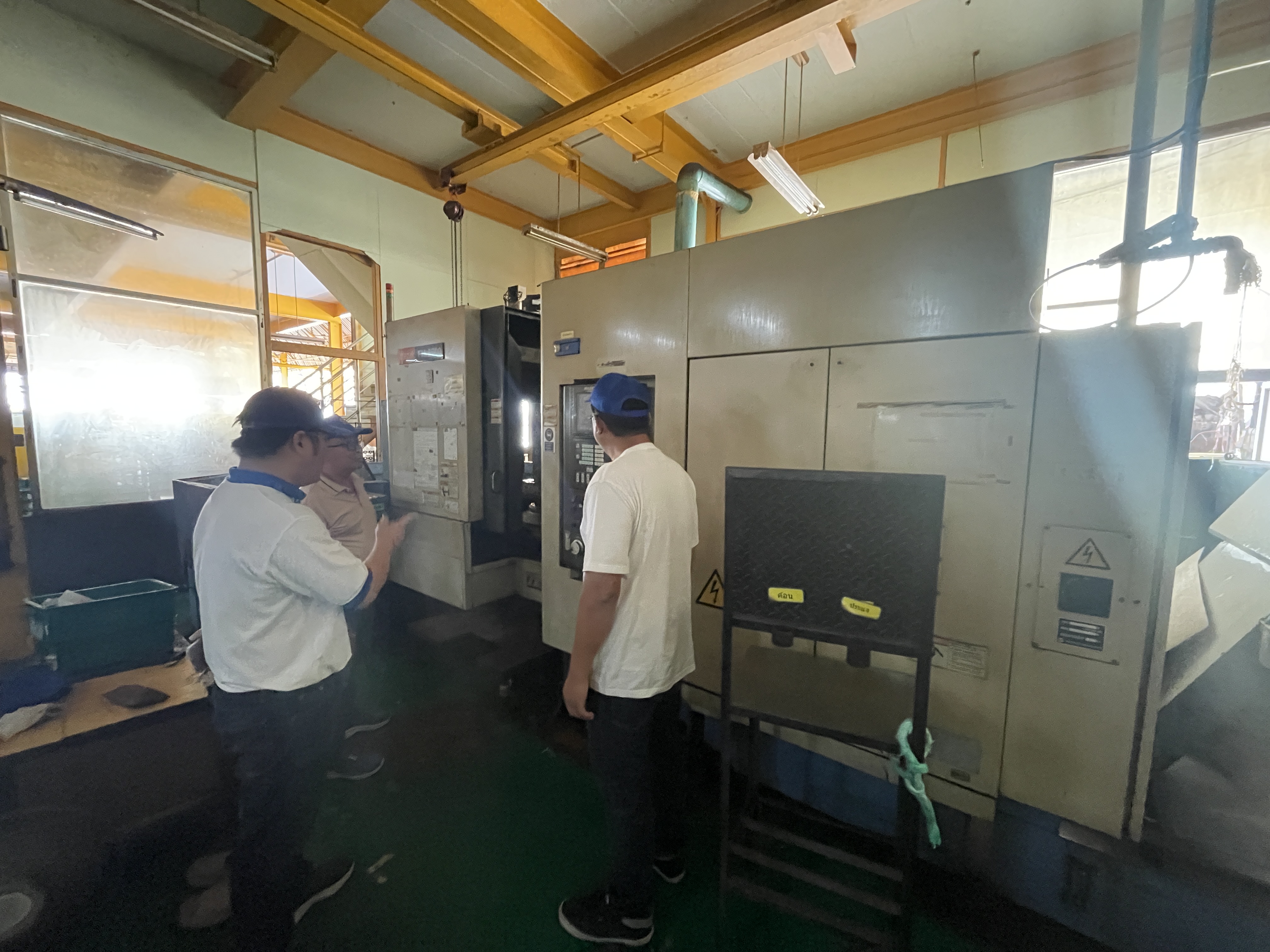

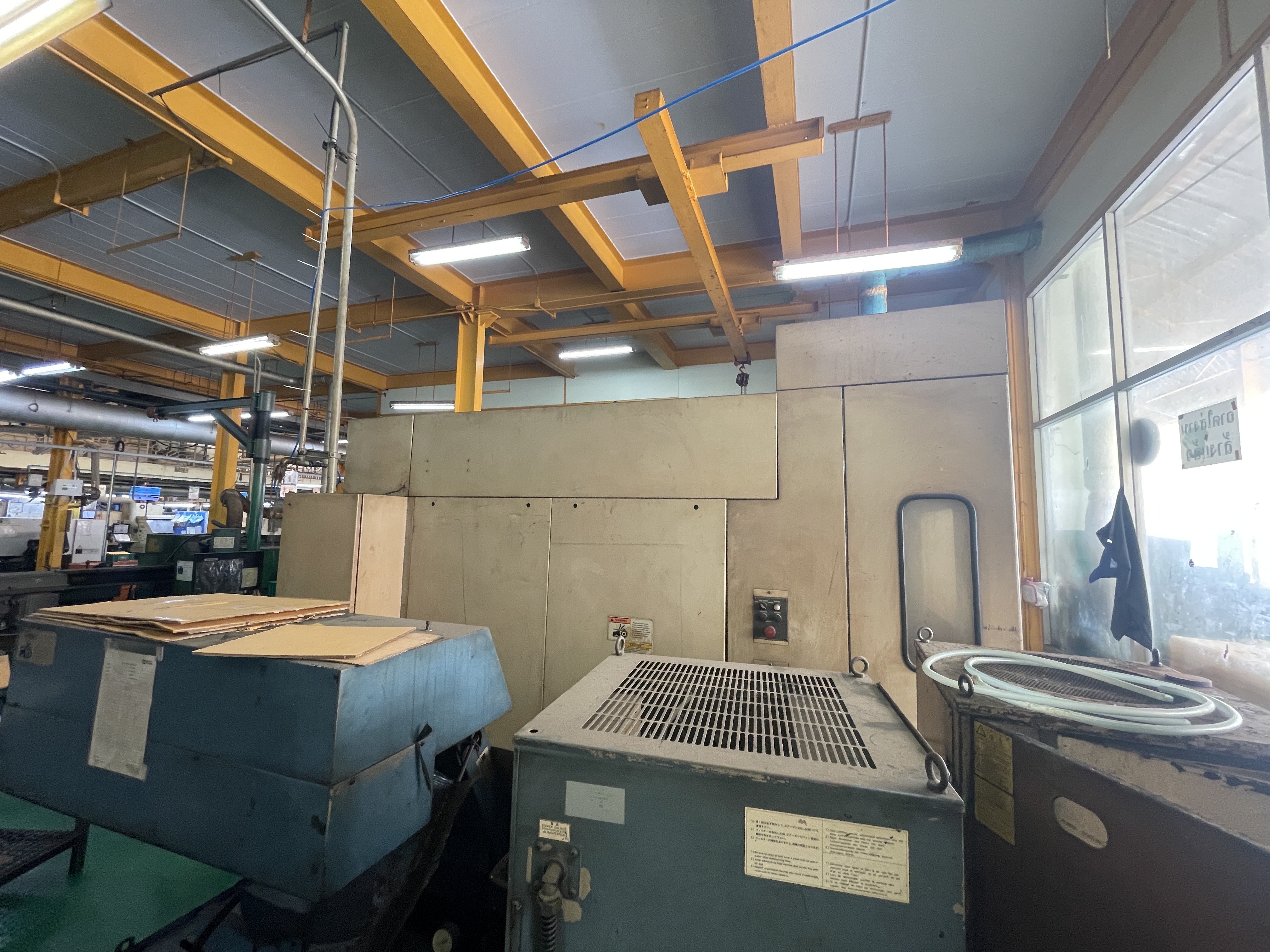

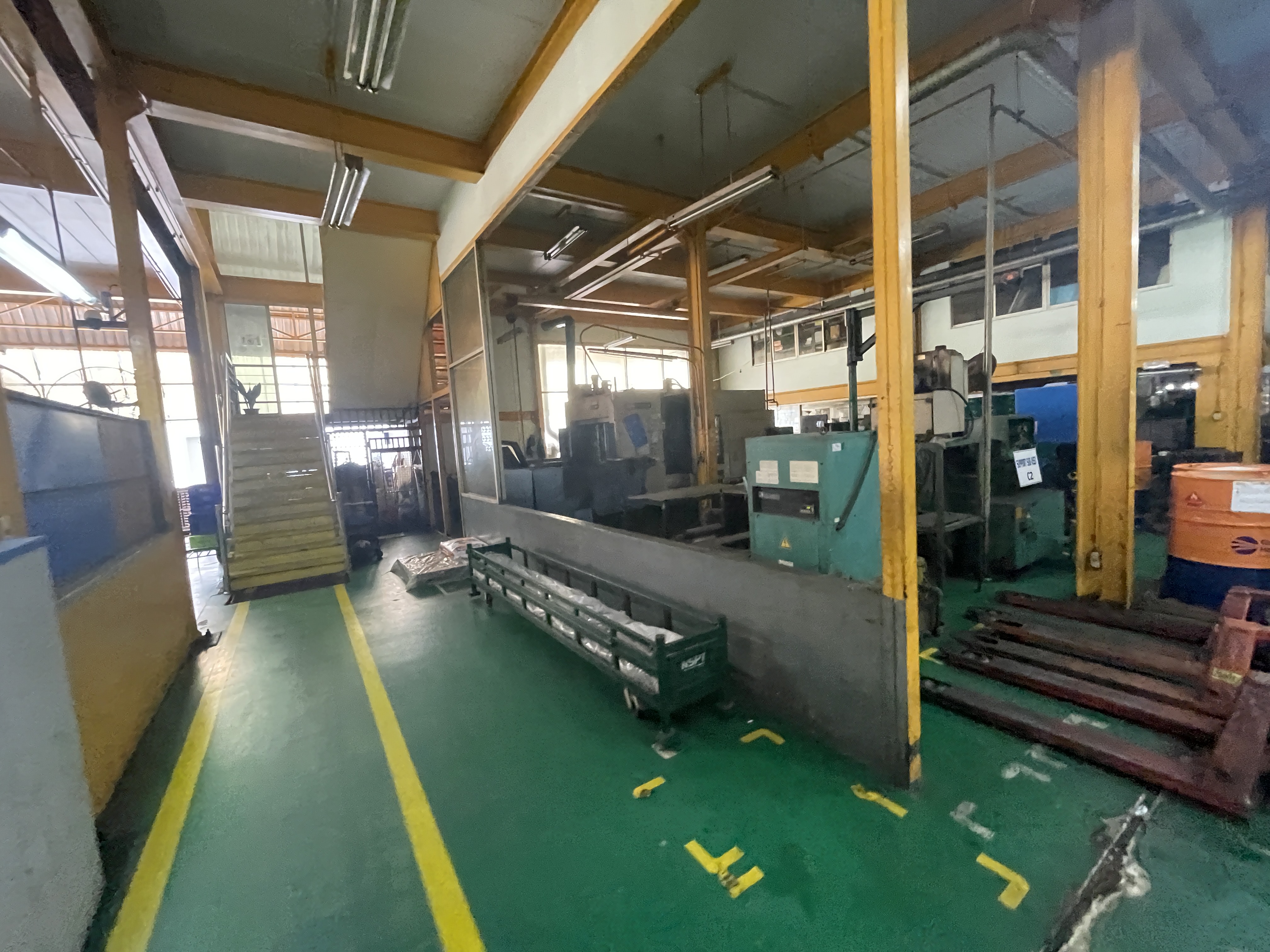

Used, in good operational condition. The machine remains installed at its current site and is available for on-site inspection upon request.
