Entire high-capacity thermal transfer paper coating and converting line originally built around a YII-CHWAN 1650 mm thermal transfer coating machine with 36 m drying tunnel. Line includes supercalendering, precision sheeting, and automatic ream wrapping. All equipment is currently idle in Taiwan, dismantled-ready or in-place depending on component, and offered as one complete lot.

Key Equipment Included:

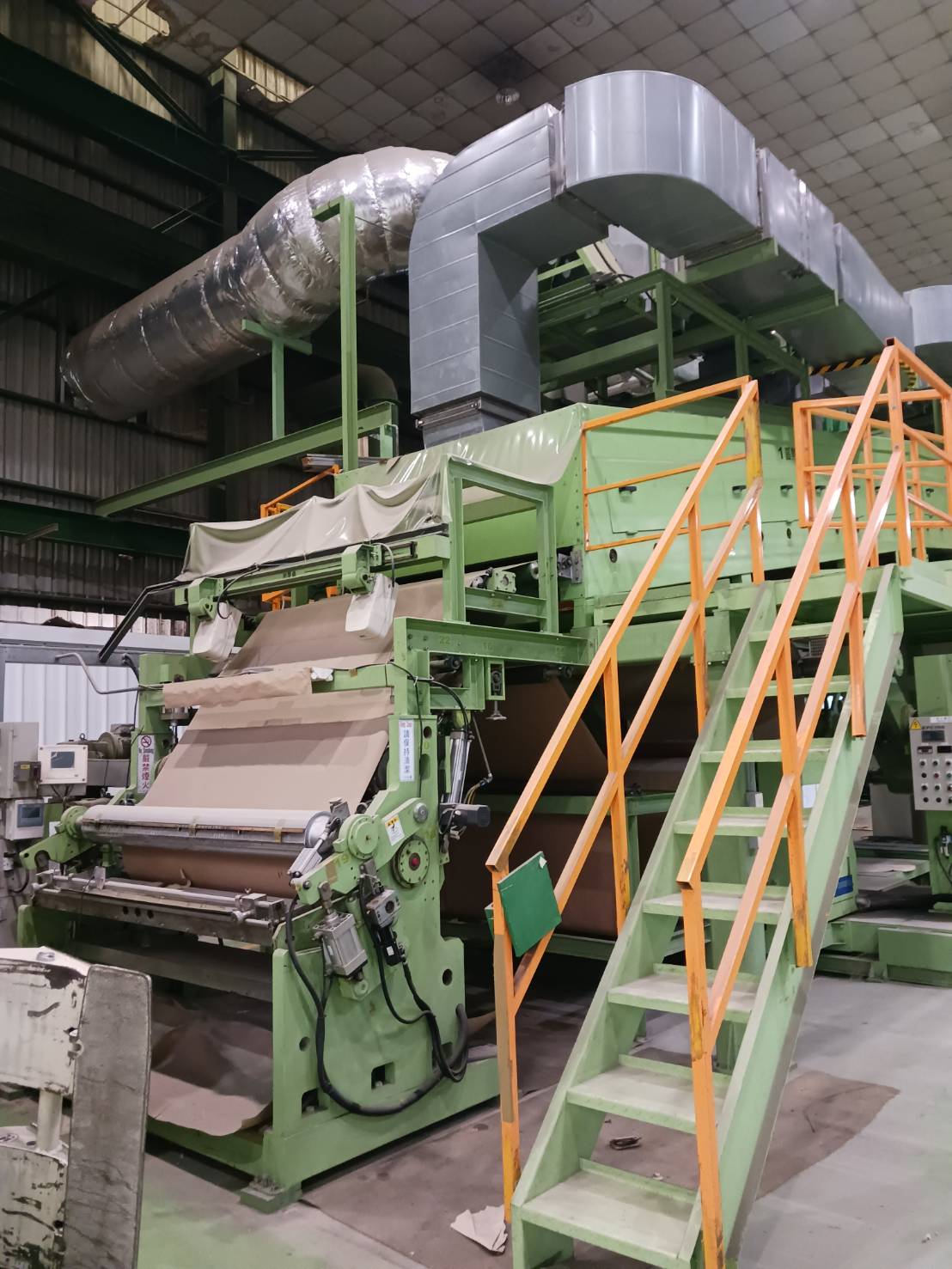

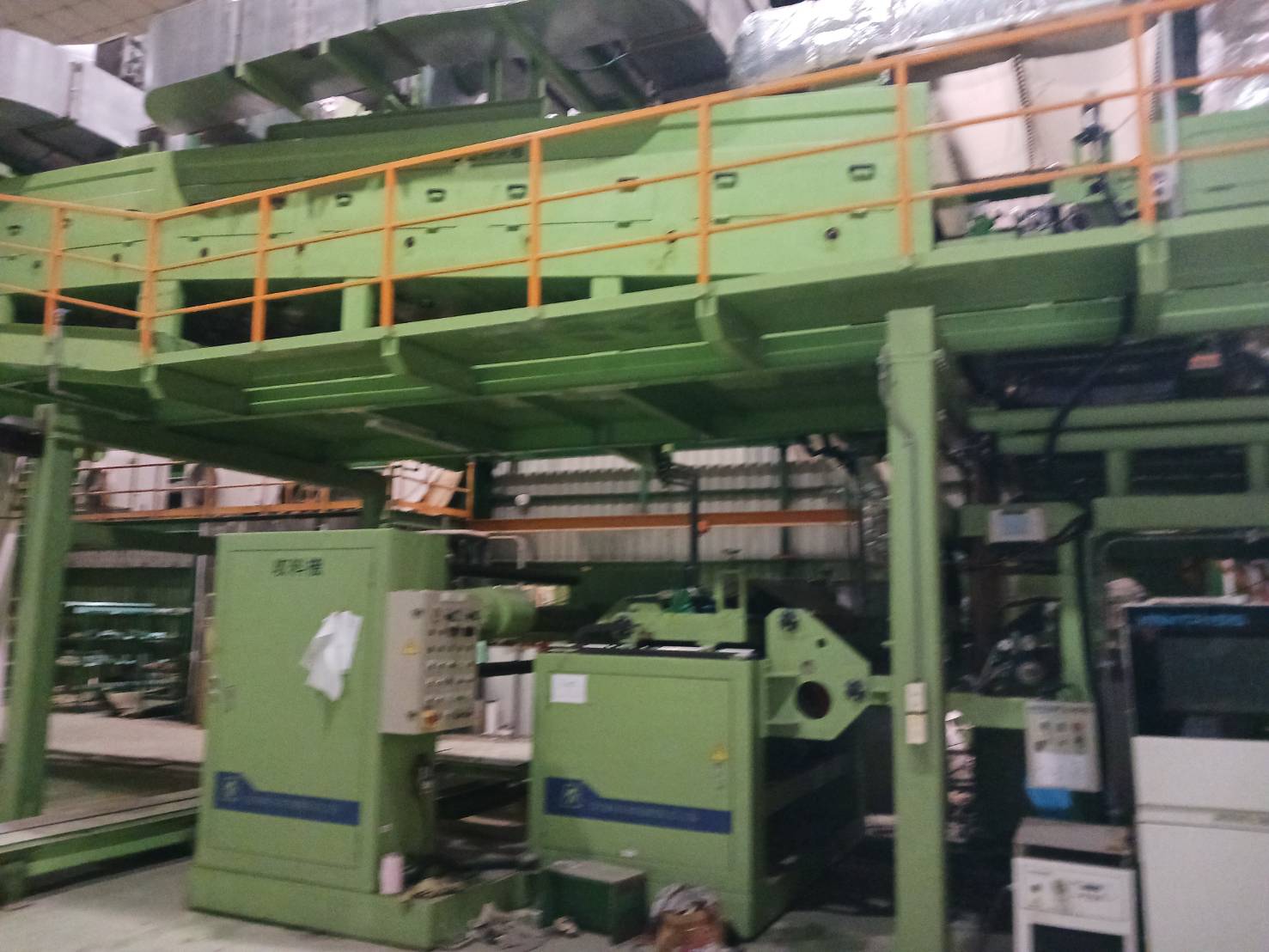

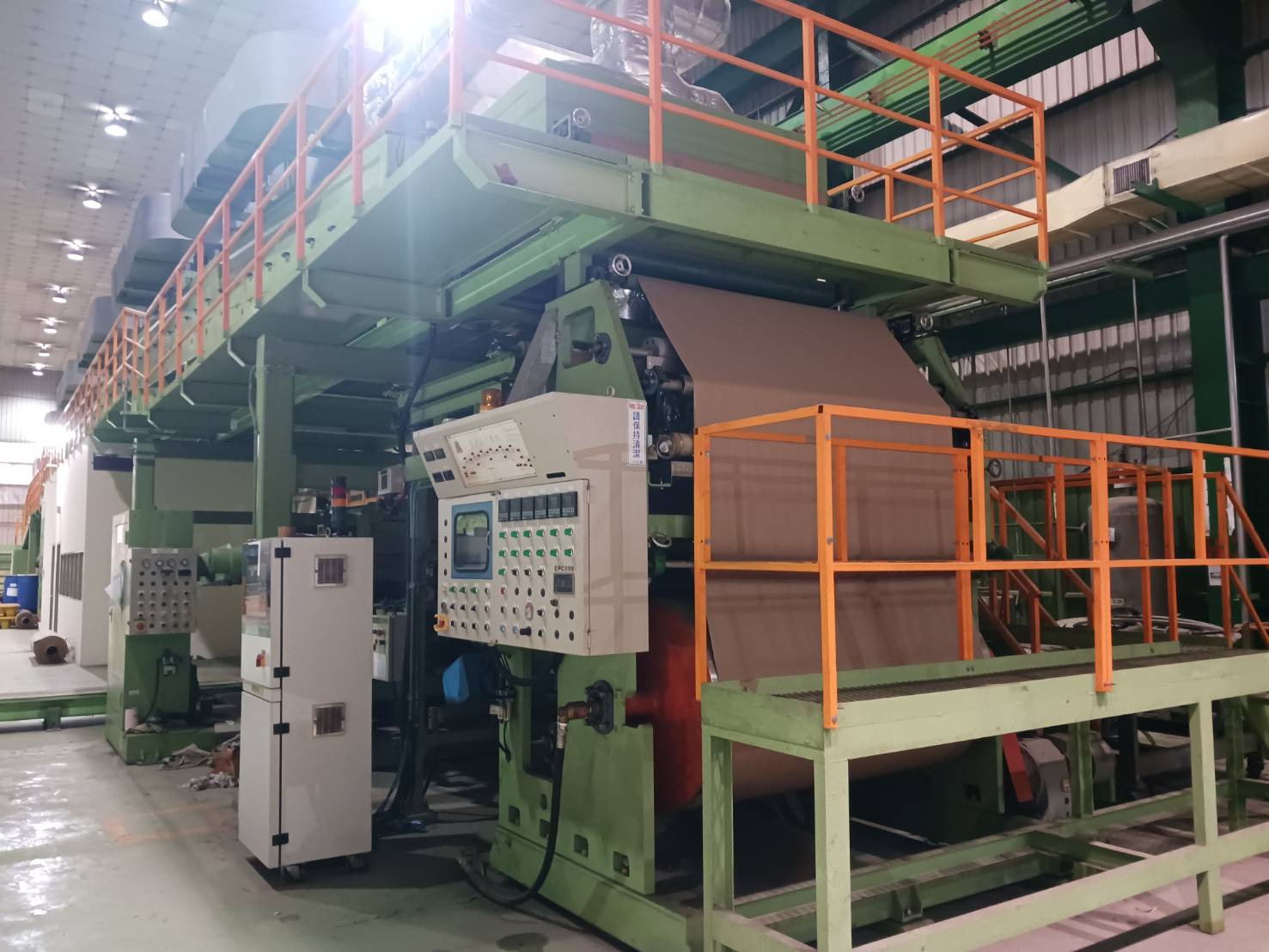

1. YII-CHWAN Thermal Transfer Coating Machine (1650 mm)
   • Working width: 1650 mm (face 1750 mm)
   • Max speed: 120 m/min mechanical, 100 m/min production

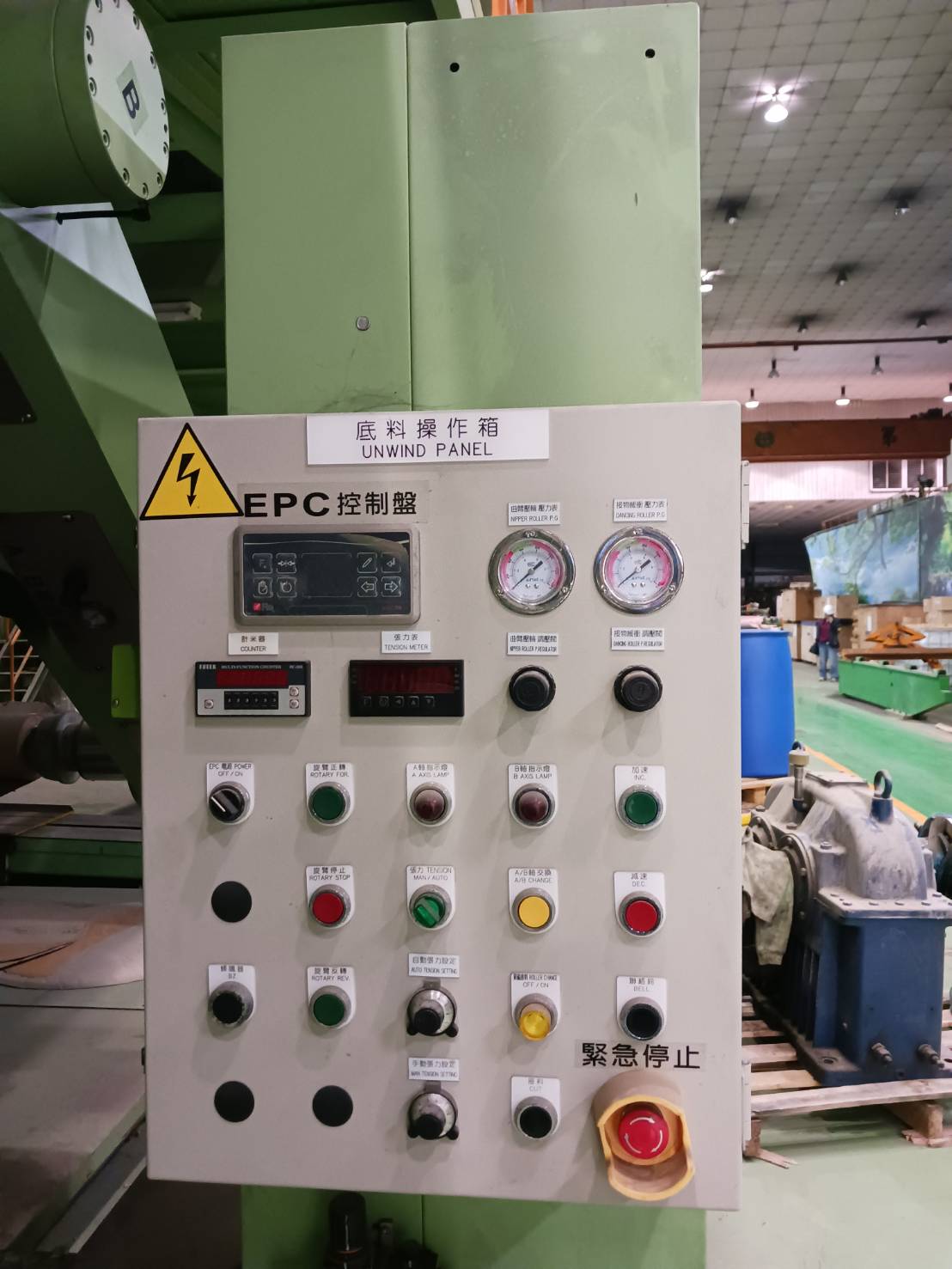

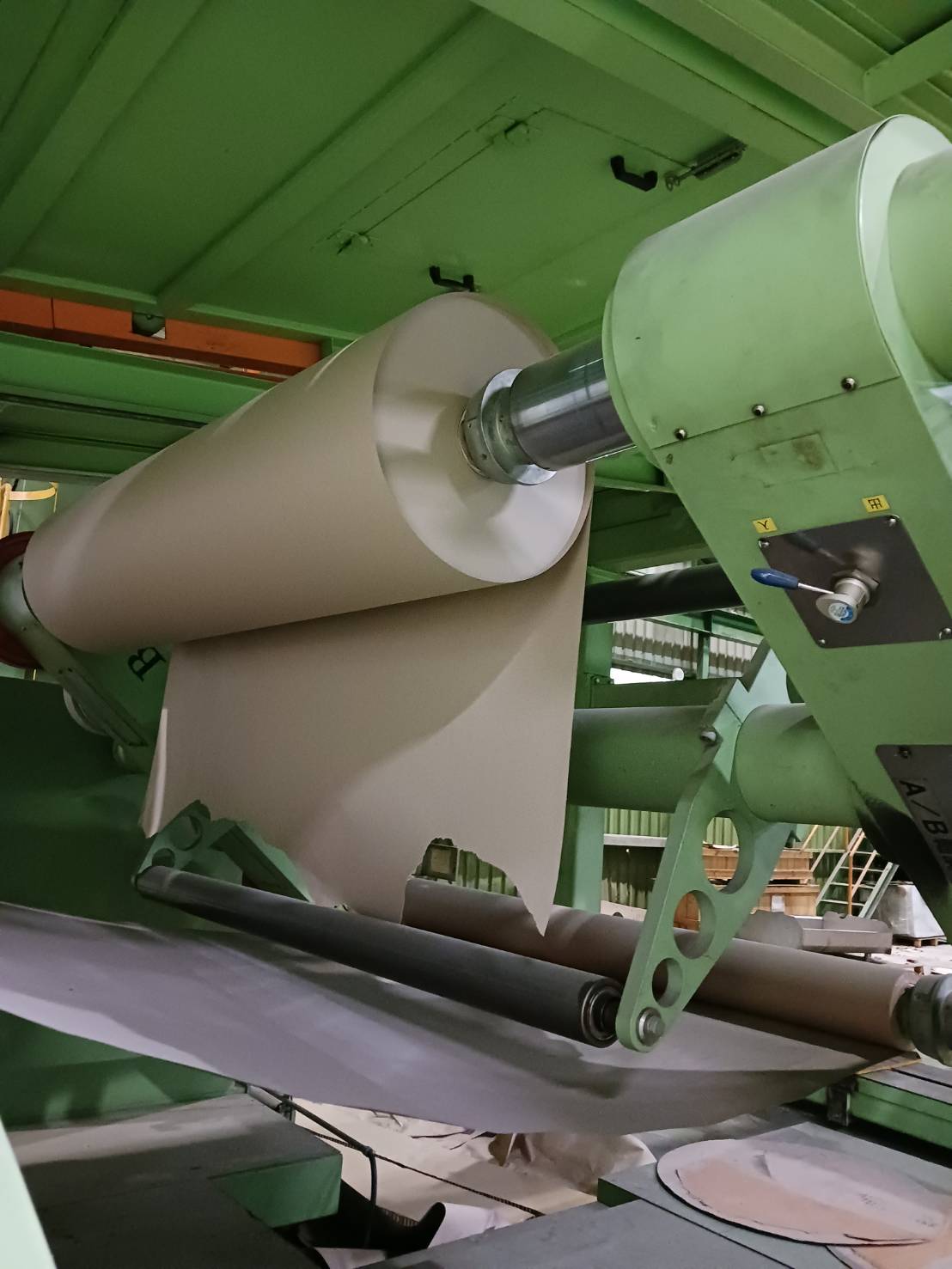

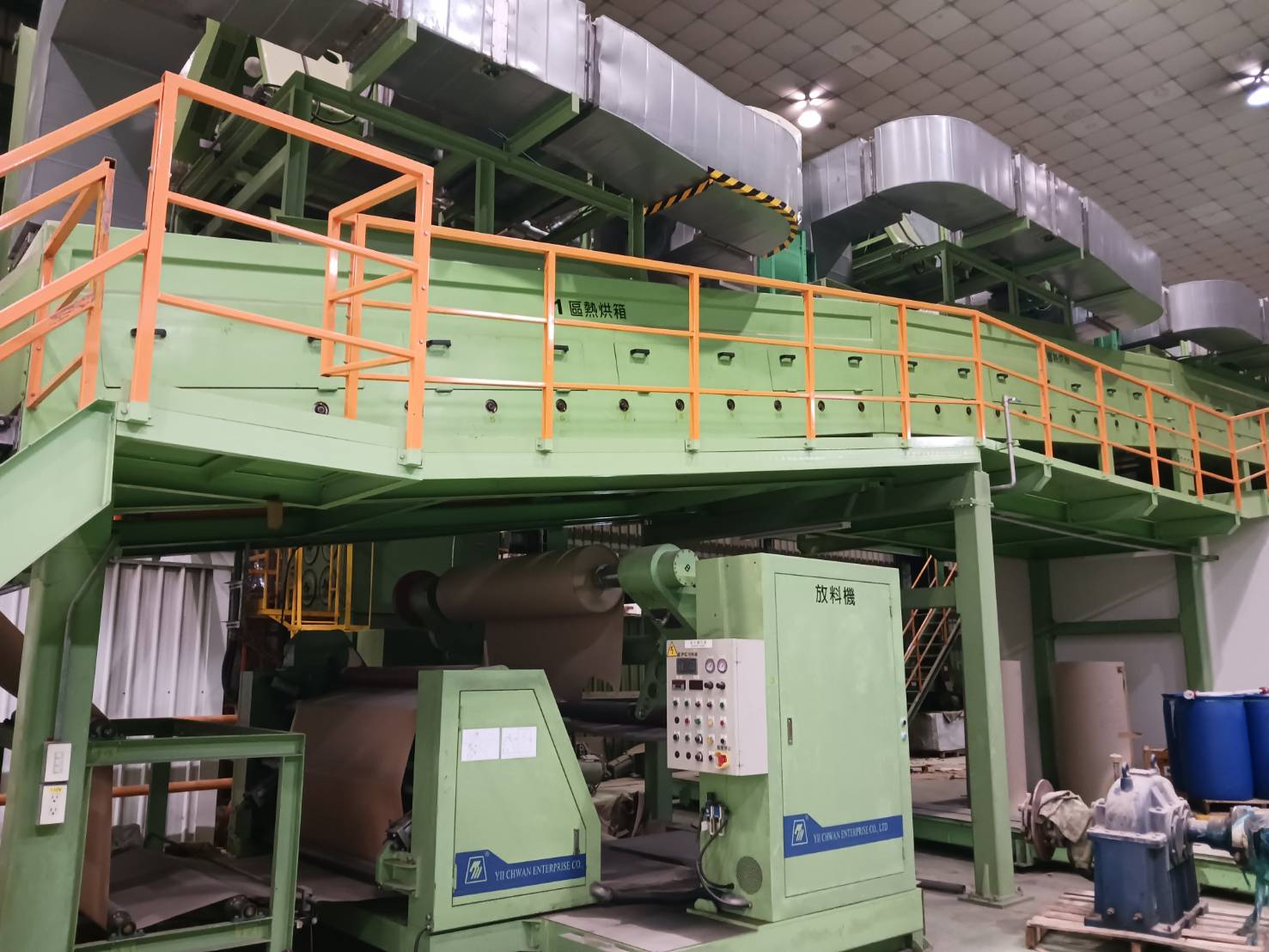

   • Shaftless unwinder + auto-splicing + EPC

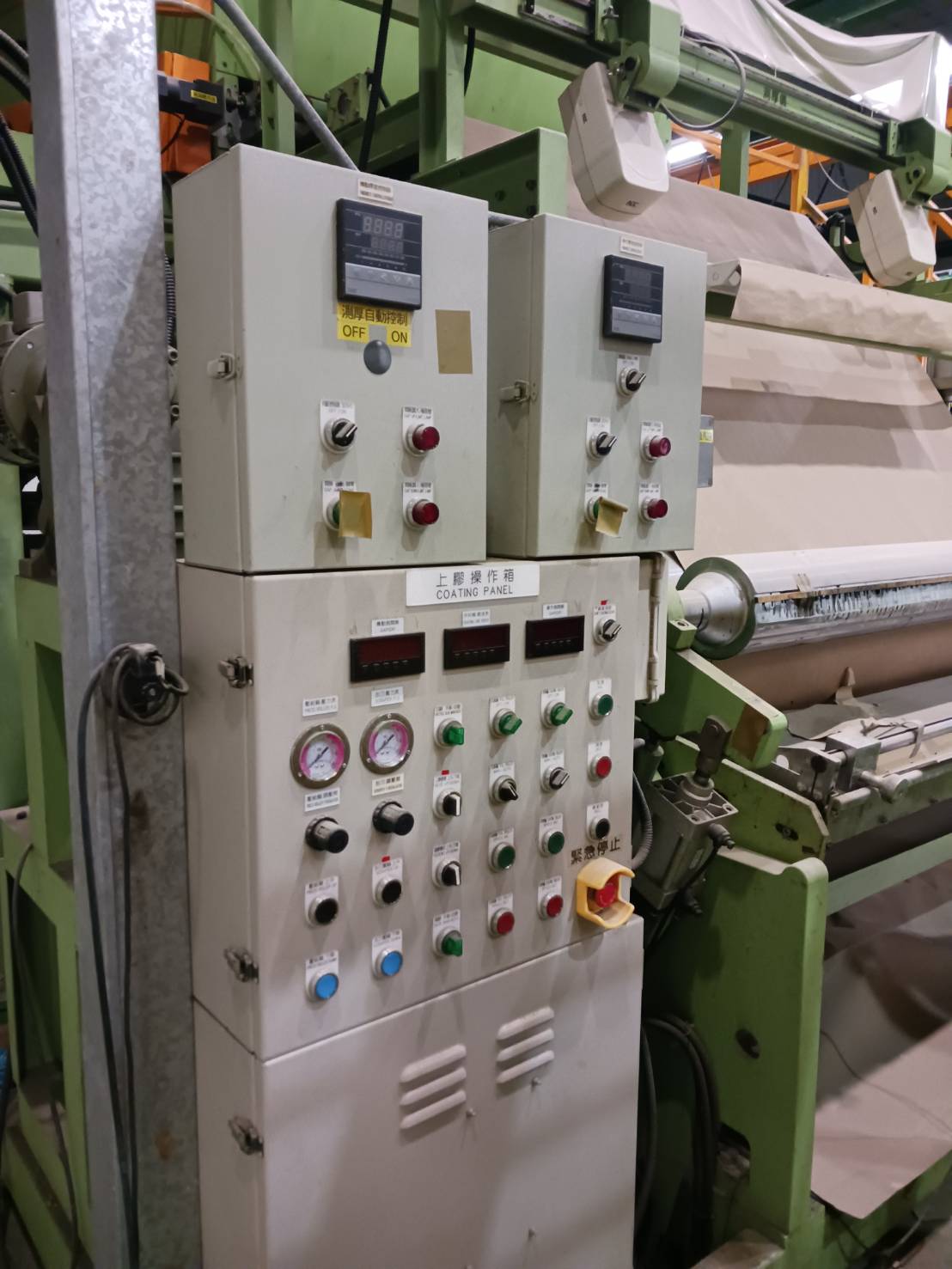

   • Transfer coating head with auto-coating control

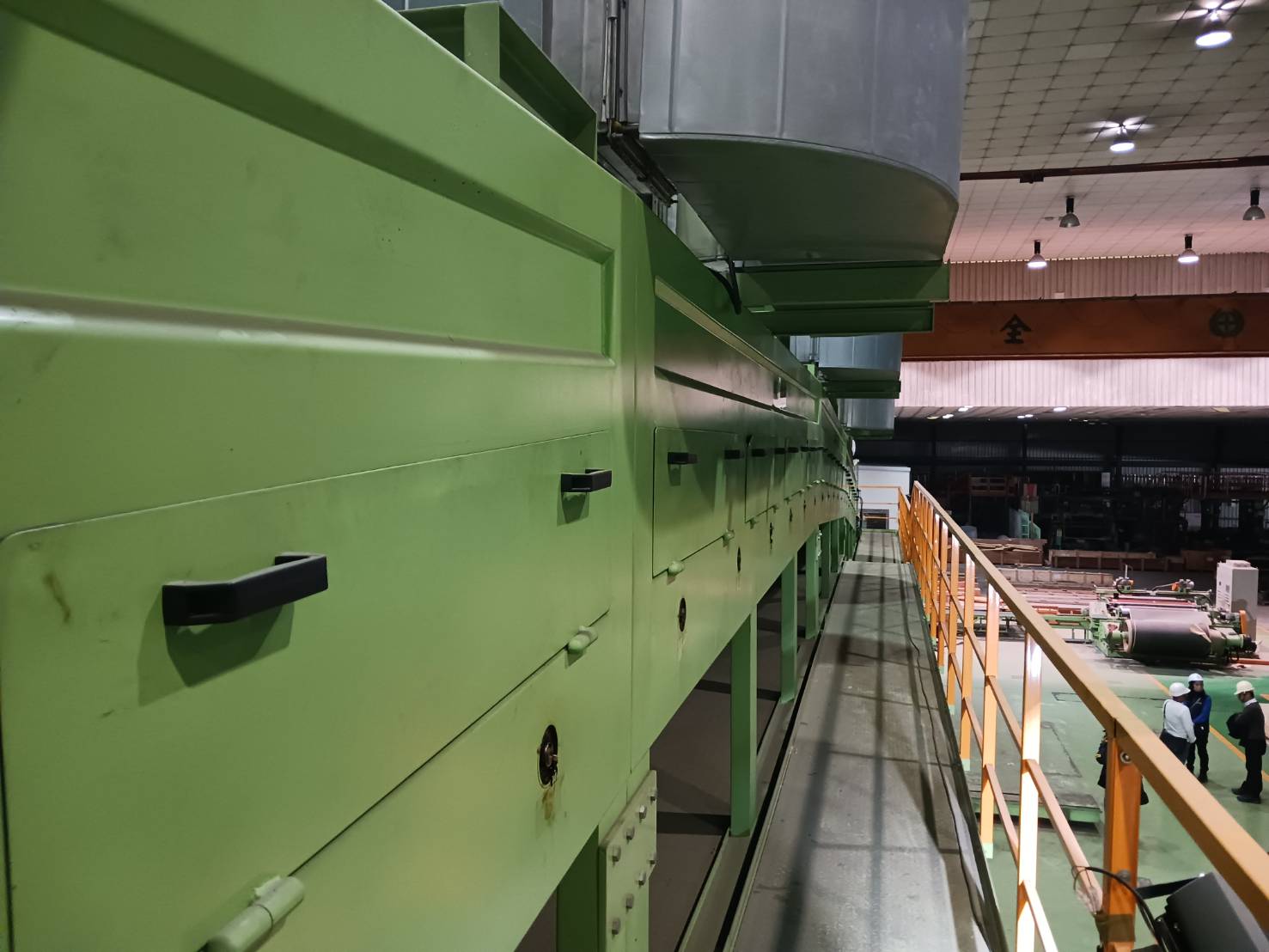

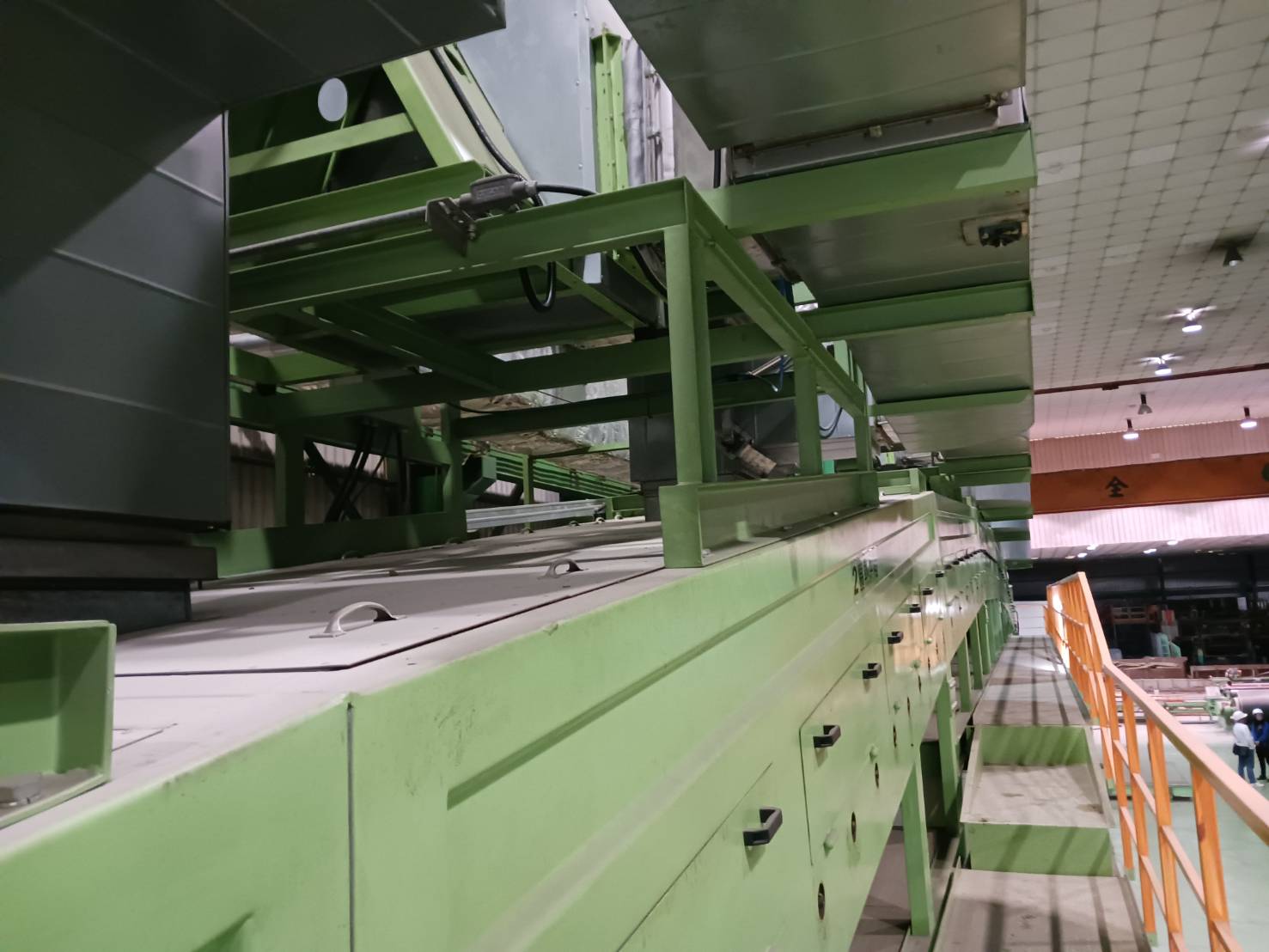

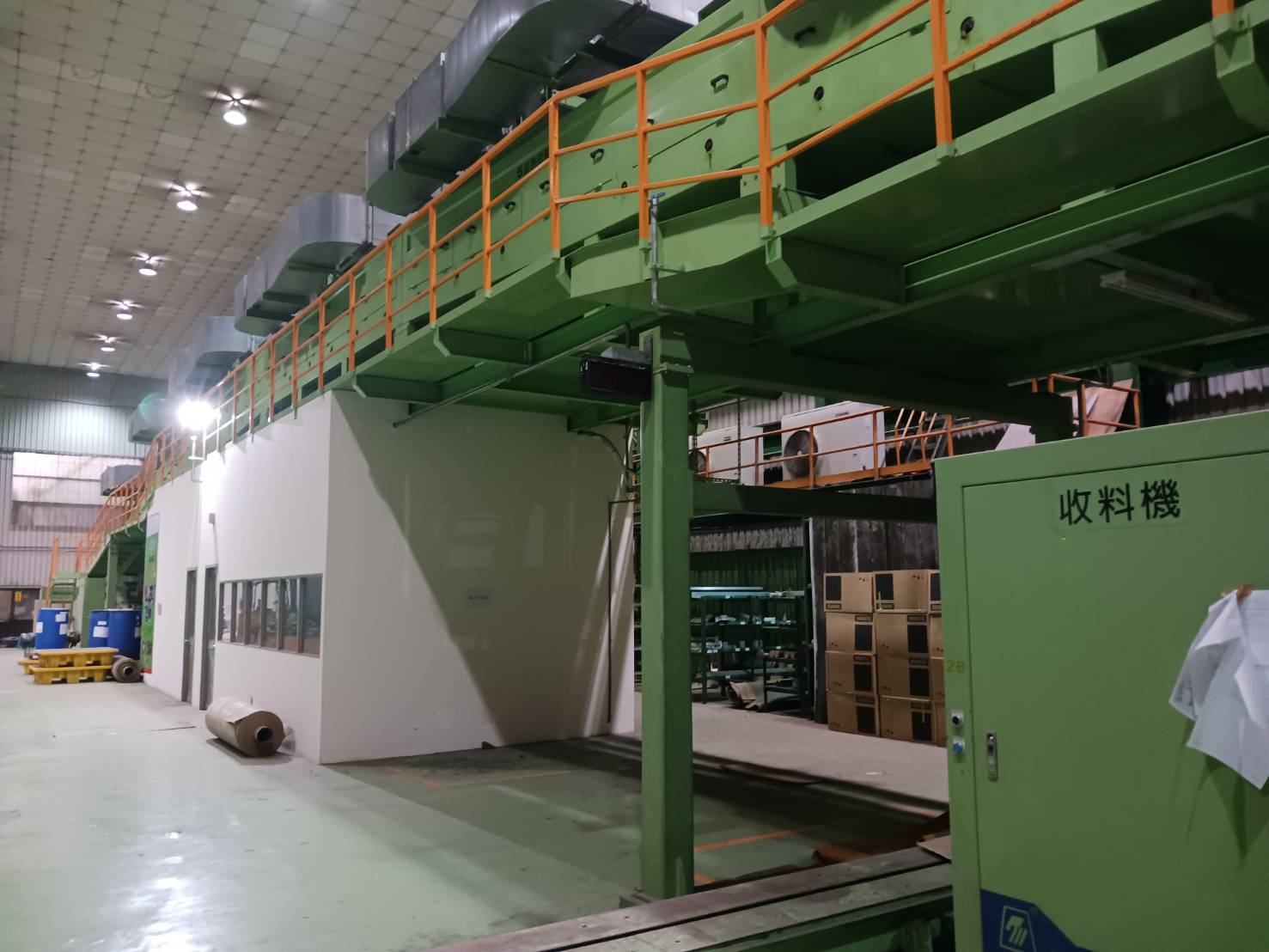

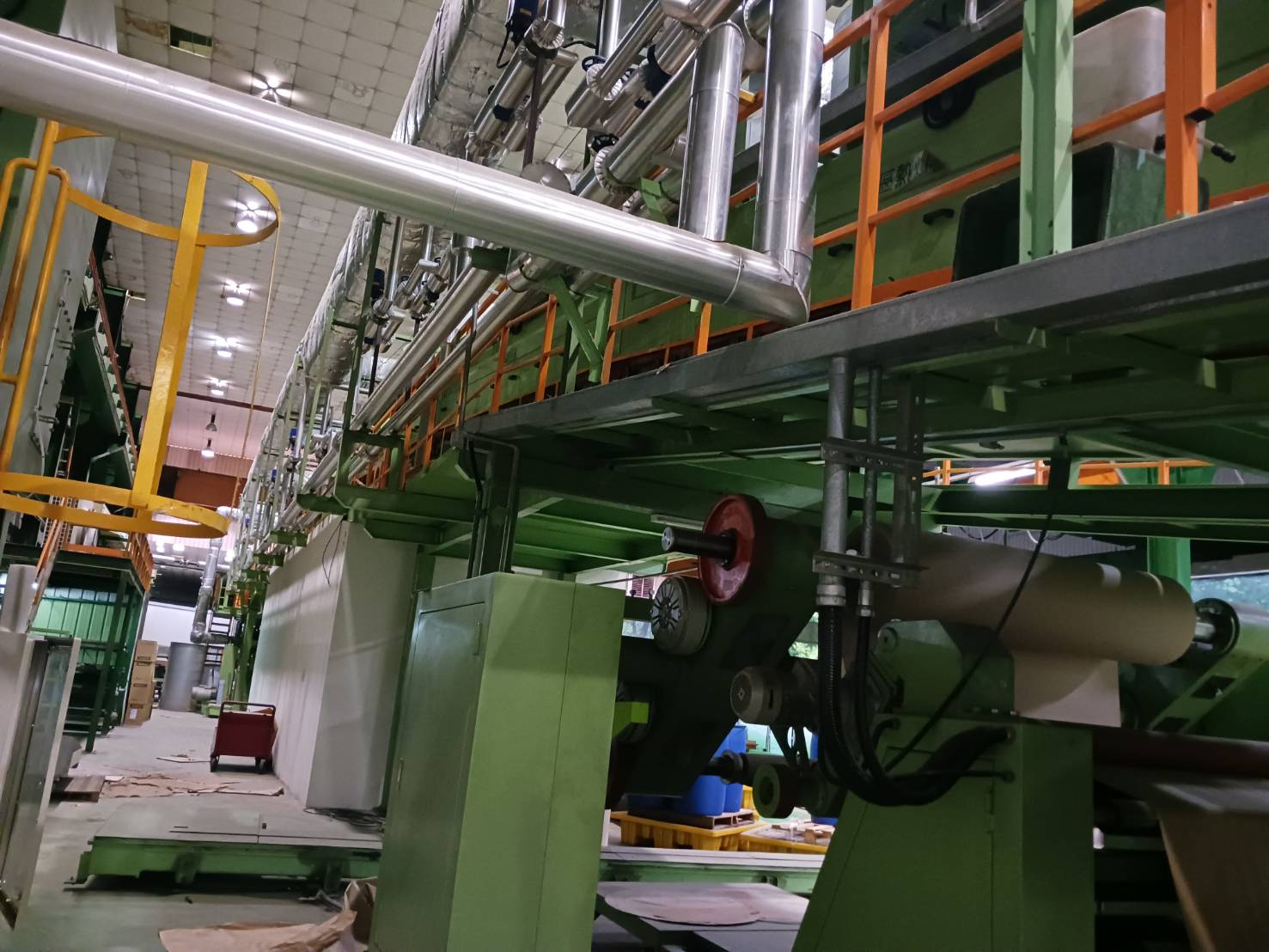

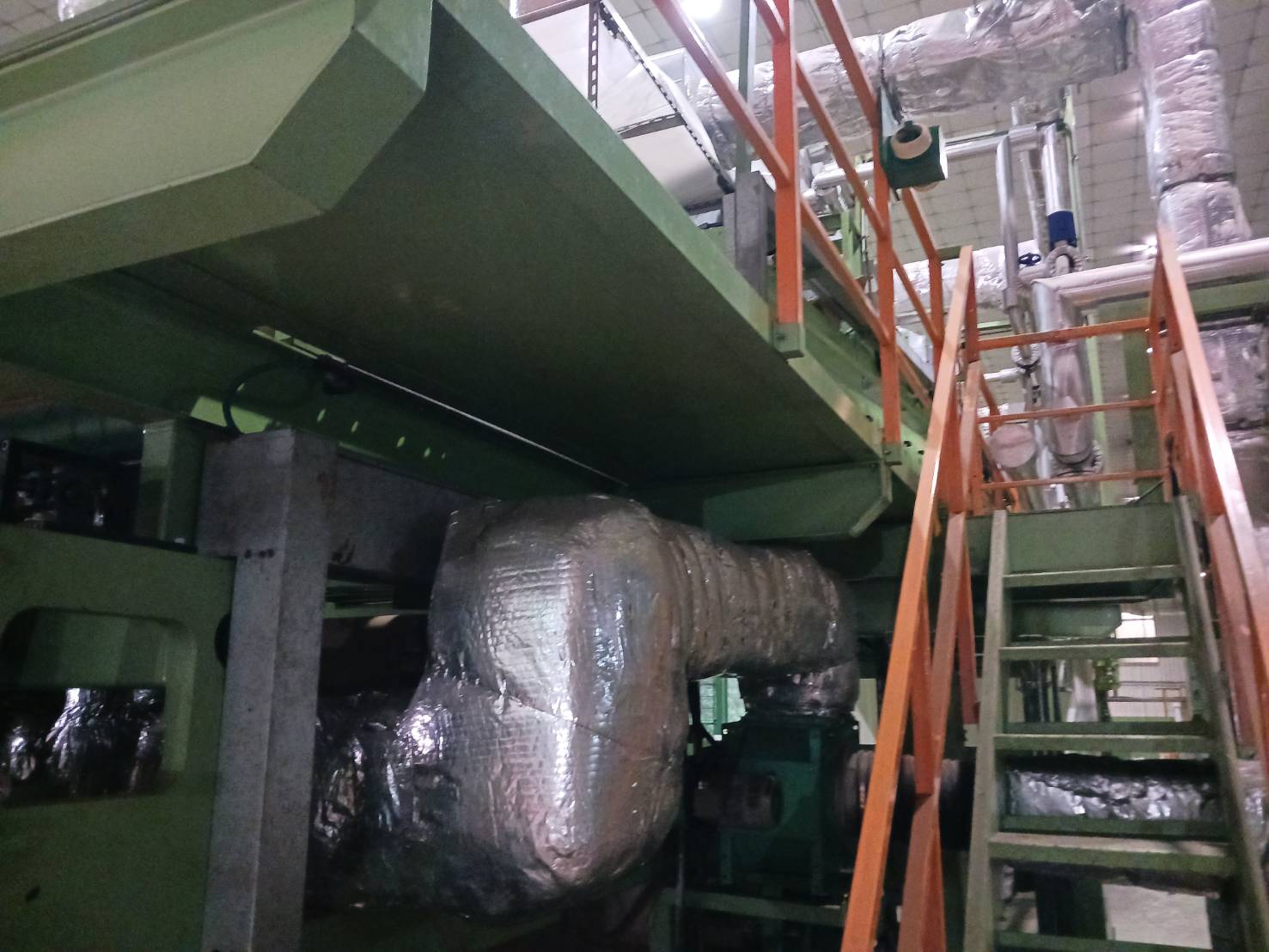

   • 36 m drying tunnel (6 zones × 6 m)
   • Cooling + moisturizing + laminating station

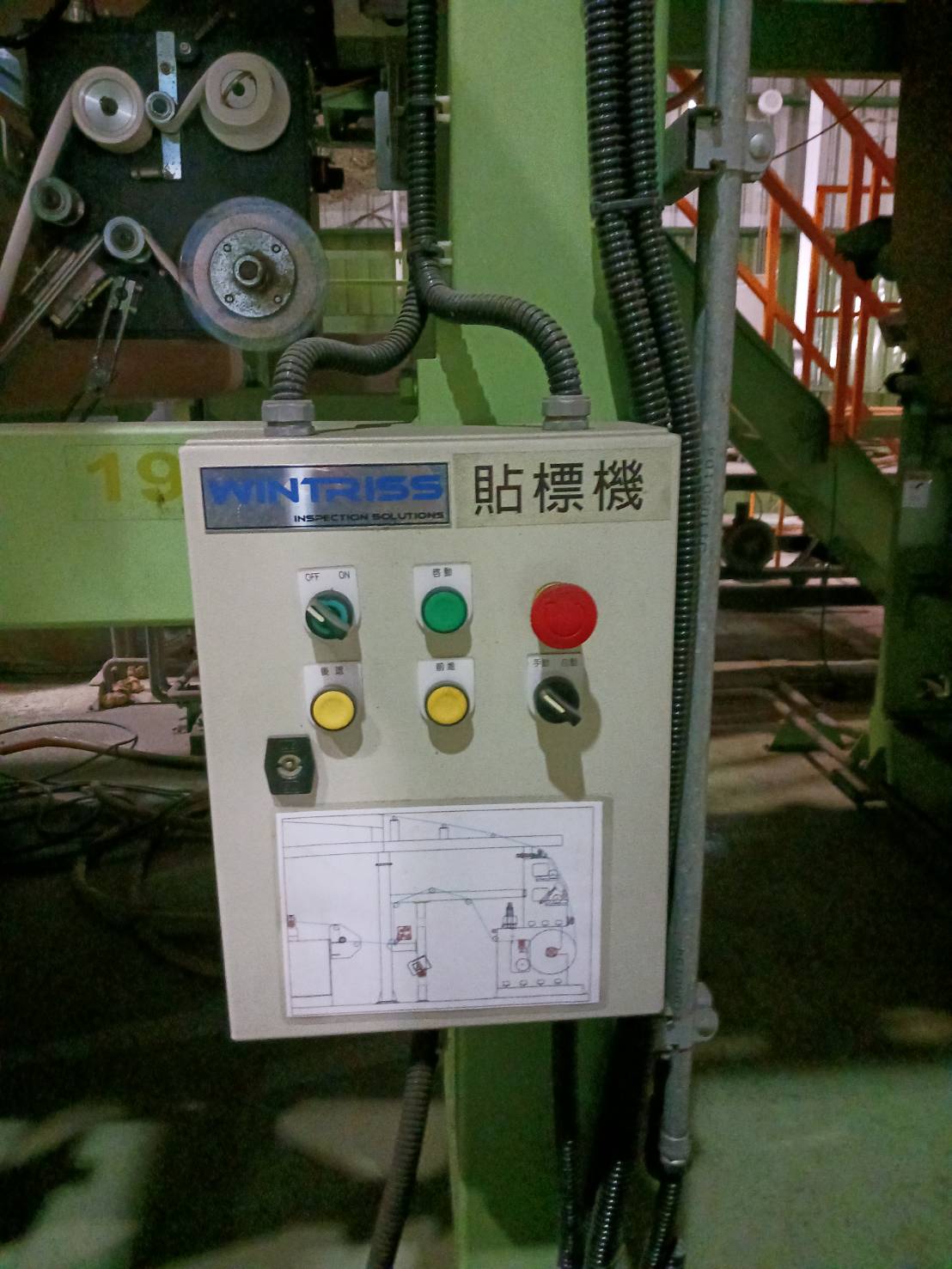

   • NDC thickness gauge, PSC moisture gauge, WINSTRISS defect inspection

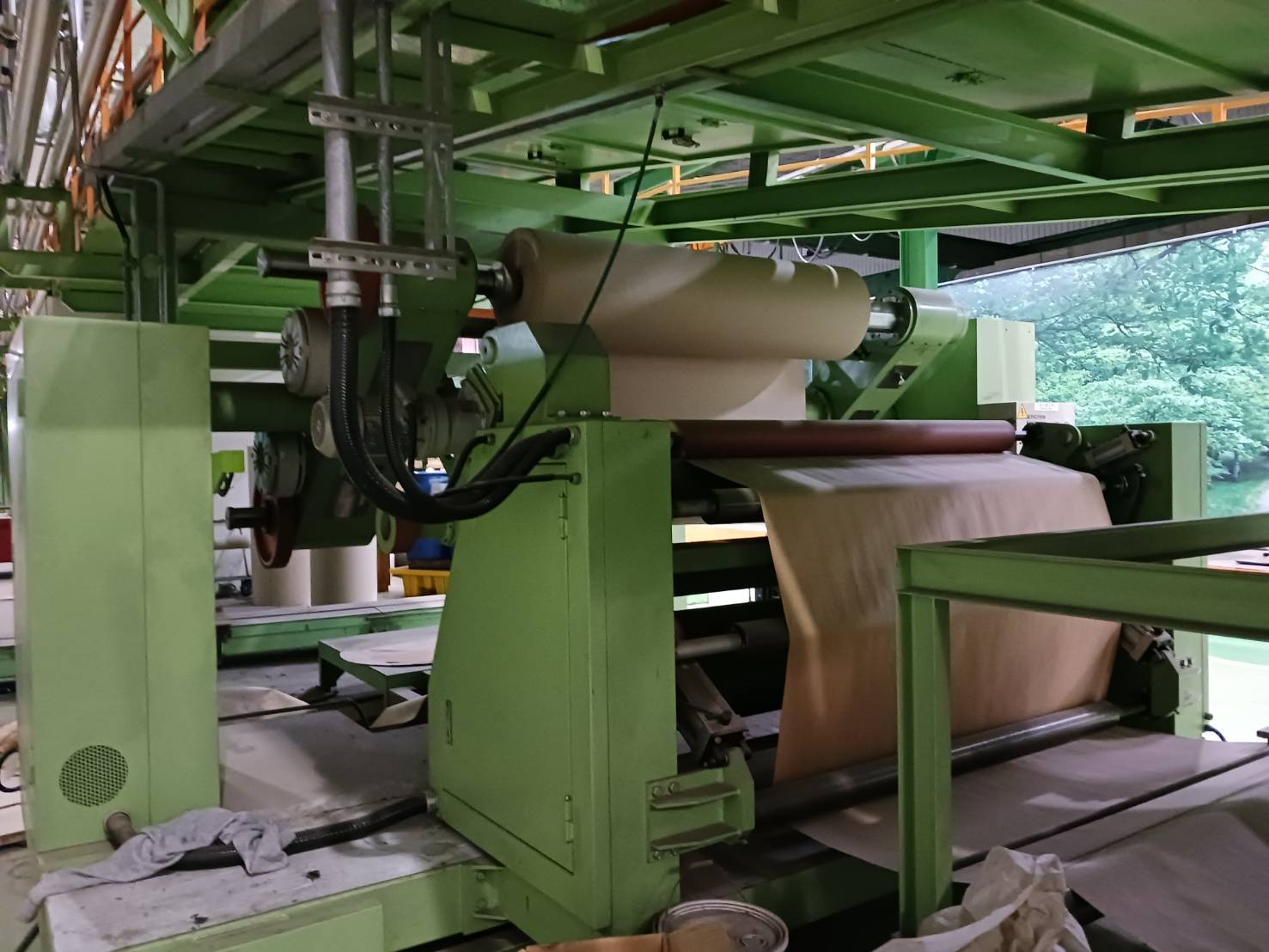

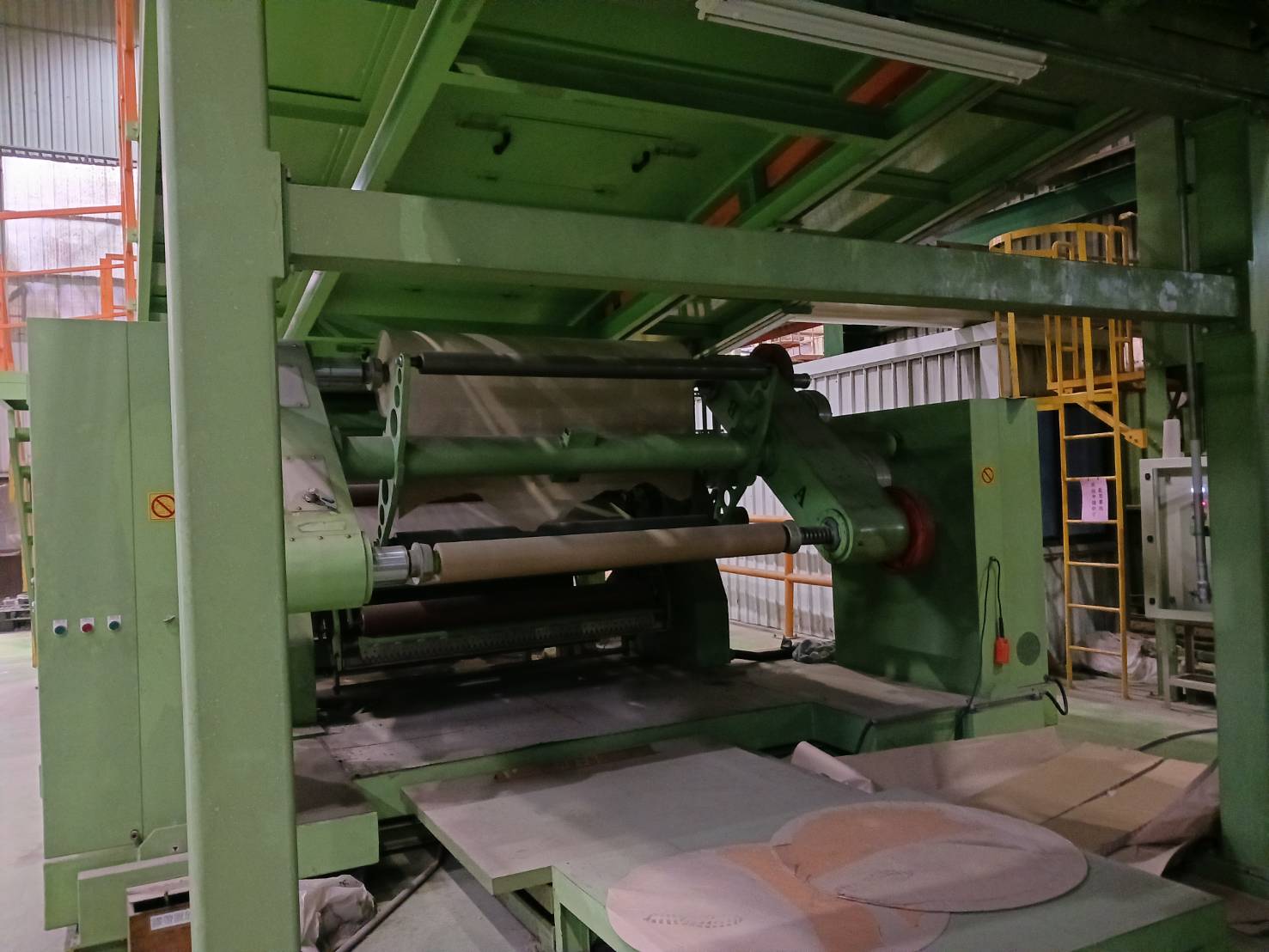

   • Shaftless turret rewinder with auto-splicing

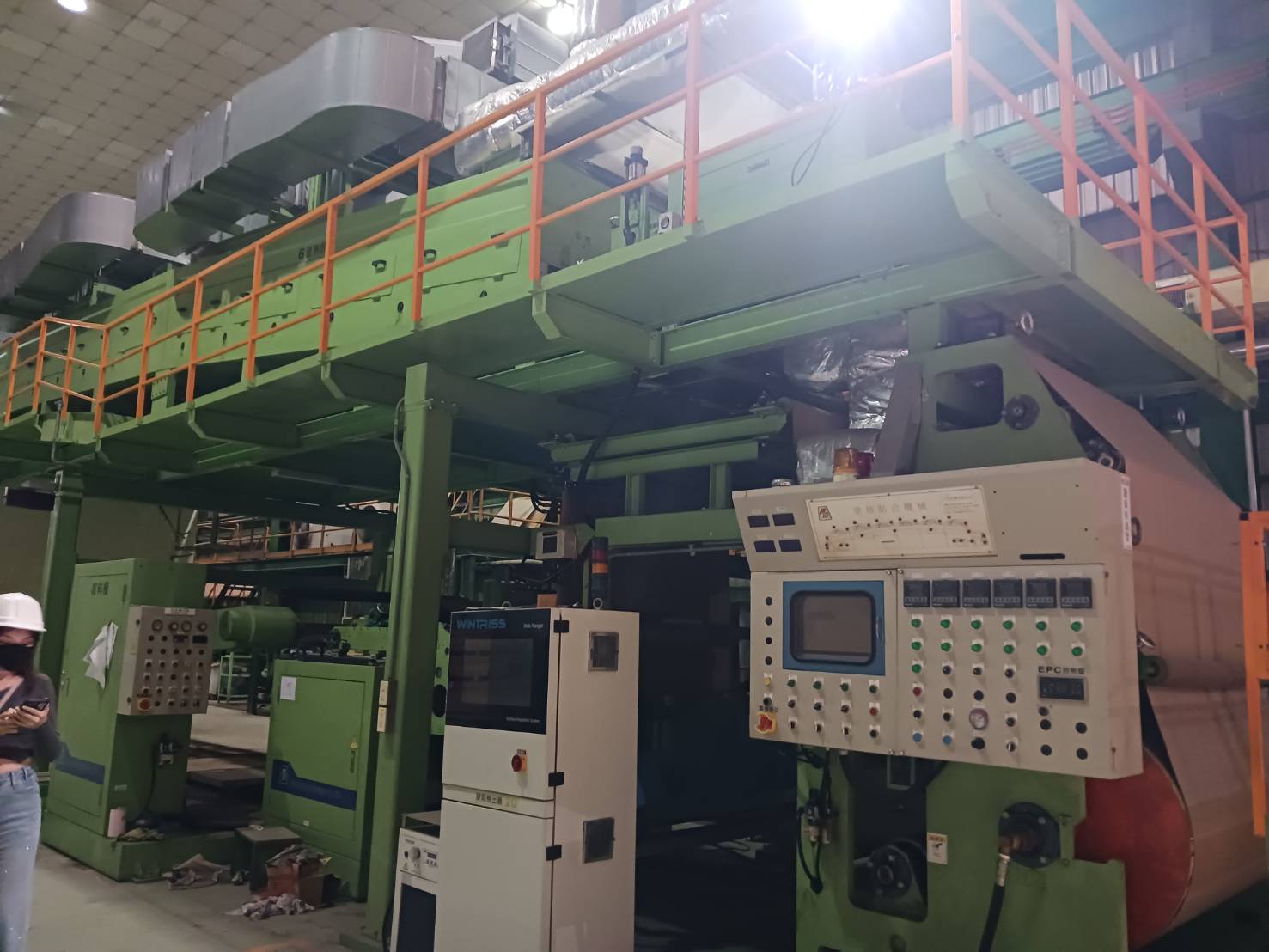

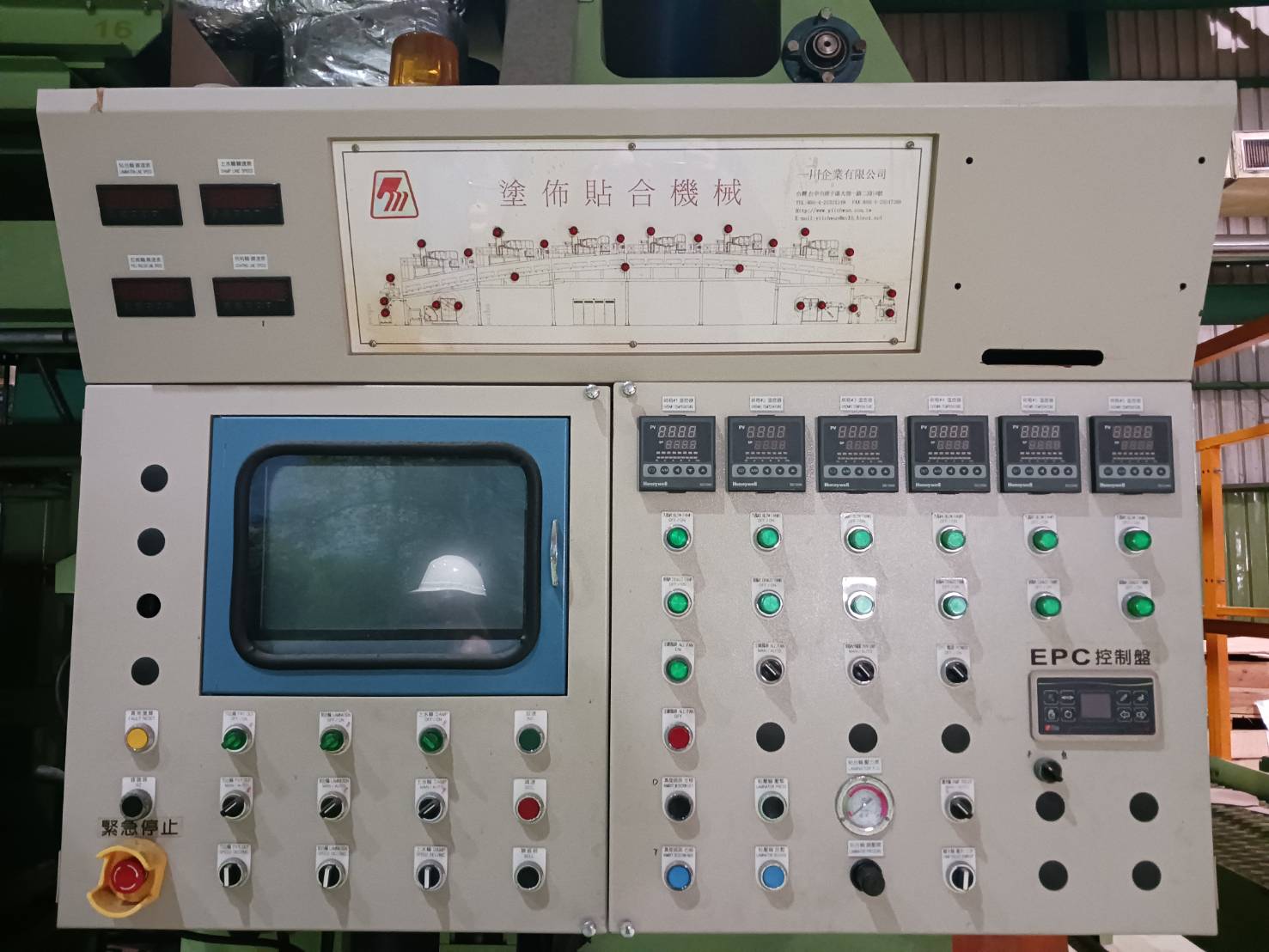

   • Mitsubishi PLC control
2. KLEINWEFERS Supercalender 3400 mm (1990)
   • 12-roll configuration, max 800 m/min, 300 daN/cm nip pressure
3. JAGENBERG Synchro 35-215 Sheet Cutter (1992)
   • 2150 mm trimmed width, up to 350 m/min
4. KOTOBUKI Sheet Cutter (1988)
   • 1930 mm trimmed width, up to 200 m/min
5. KOBAYASHI Sheet Cutter (1650 mm)
6. Two WRAPMATIC GRM Ream Wrappers (Italy)
   • Max ream size 1000 × 1400 × 80 mm, full servo
7. Supporting Equipment
   • IHI 3500 mm off-machine coater
   • Valmet-Raisio 6.8 m³ pigment mixer
   • Neue Bruderhaus 3420 mm re-reeler

Key Specifications:

• Product Type: Complete Paper Coating & Converting Line
• Main Manufacturer: YII-CHWAN Enterprise Co., Ltd. + others
• Working Width: 1650 mm effective
• Year Range: 1988 – 1992
• Condition: Used – currently idle
• Operation Status: Idle (in place or dismantled-ready)
• Origin: Taiwan / Germany / Italy / Japan
• Industry: Paper industry (thermal transfer & specialty coated papers)
• Location: Taiwan
• Reserve: No
• Status: Offered as one complete lot – ideal for relocation
